Product Description:
Inherent Flame Resistance
This material features an inherent flame resistance with a Limiting Oxygen Index (LOI) of 28% or higher. It self-extinguishes immediately upon removal of the flame, exhibiting no melting, dripping, or afterglow. It surpasses the rigorous standards set by NFPA 701 and ASTM D6413, ensuring permanent thermal protection that will neither wash out nor degrade over time.
Exceptional Tensile Strength
With a tensile strength of at least 3.2 GPa, this material is five times stronger than steel wire on a weight-for-weight basis. It is capable of enduring extreme mechanical stresses, making it highly suitable for high-tension applications such as ballistic panels, conveyor belts, and structural reinforcements.
Superior Abrasion Resistance
Engineered to perform in heavy-duty wear conditions, the material withstands over 60,000 Martindale cycles. It provides a service life that is three to five times longer than traditional polyester or nylon fabrics in applications subjected to intense friction, such as industrial sleeves, gaskets, and protective covers.
High Cut Resistance
Thanks to its tightly woven structure, the material offers high cut resistance rated at EN388 Level D and is equivalent to ANSI levels A4 to A5. This makes it an excellent choice for protective gloves, sleeves, aprons, and equipment shielding used in industries like metal fabrication, glass handling, and automotive manufacturing.
Excellent Thermal Stability
The material maintains excellent thermal stability, with a continuous operating temperature up to 250°C and a decomposition temperature exceeding 500°C. It preserves its mechanical integrity under extreme heat without undergoing shrinkage or degradation.
Chemical Resistance
It exhibits good resistance to a wide range of organic solvents, oils, and acids, except for concentrated sulfuric and nitric acids. This chemical resilience allows it to perform reliably in challenging environments such as chemical processing and filtration.
Lightweight Construction
Weighing only 260 grams per square meter, this material strikes an optimal balance between strength and weight. It is thin enough to be used in multi-layer composite laminations while remaining durable enough for use as a standalone fabric.
Features:

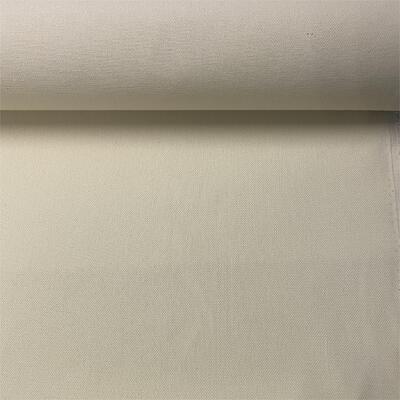

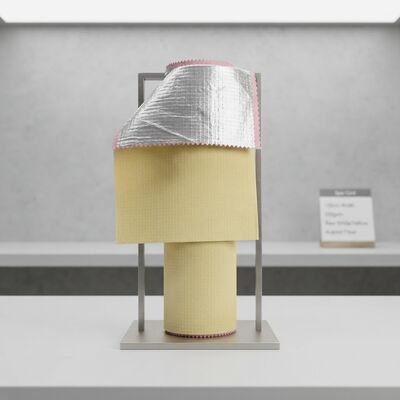

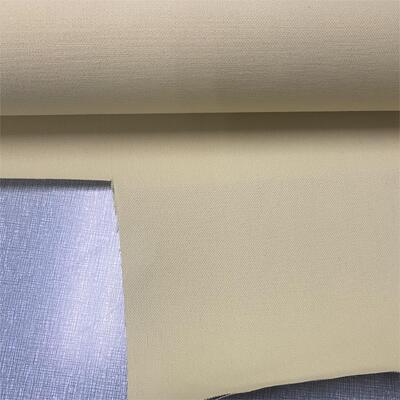

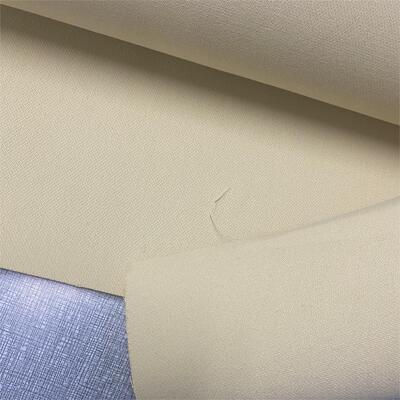

Para-aramid woven fabric weighing 260 grams per square meter is considered the benchmark for high-performance industrial textiles. Made entirely from 100% para-aramid fibers, equivalent in quality to Kevlar®, this fabric offers a unique combination of intrinsic flame resistance, exceptional tensile strength, and outstanding abrasion resistance, all within a lightweight material.
In contrast to flame-retardant textiles that rely on chemical treatments and lose their effectiveness after multiple washes, the fire-resistant properties of para-aramid are inherent at the molecular level. This means its protection is integrated into the polymer structure itself. When exposed to extreme heat, the fabric chars rather than melts or drips, and it does not support combustion, providing consistent safety throughout the material's lifespan.
At a weight of 260 g/m², this fabric achieves an optimal balance—substantial enough for rigorous protective uses, yet sufficiently light and flexible for comfortable wearable equipment and adaptable composite laminates. Its plain or twill weave construction ensures even strength distribution along both the warp and weft directions, effectively reducing the directional weaknesses commonly found in unidirectional fabrics.
Technical Parameters:
Technical Specifications
The material used in this product is 100% Para-Aramid Fiber, ensuring high durability and strength. The fabric has a weight of approximately 260 ± 10 grams per square meter, as measured by the ISO 3801 standard. Customers can choose between plain or twill weave types according to their requirements.
The thickness of the fabric ranges from about 0.35 to 0.40 millimeters, verified by ISO 5084. The width of the fabric can be customized within the range of 100 to 160 centimeters to suit different applications.
In terms of performance, the tensile strength for the warp direction is at least 2,500 Newtons per 5 centimeters, while the weft direction has a minimum tensile strength of 2,200 Newtons per 5 centimeters, both tested following ISO 13934-1. Tear strength is also notable, with the warp direction resisting forces of 150 Newtons or more, and the weft direction withstanding at least 130 Newtons, as per ISO 13937-2.
The fabric exhibits a Limiting Oxygen Index (LOI) of 28% or higher, according to ASTM D2863, indicating good flame resistance. It is capable of continuous operation within a temperature range from -50°C up to +250°C, and it decomposes only above 500°C, as demonstrated through thermogravimetric analysis (TGA).
Durability is further enhanced by excellent abrasion resistance, enduring over 60,000 cycles based on the Martindale test (ISO 12947-2). The material also provides superior cut resistance, rated at EN388 Level D and ANSI A4 standards.
Heat shrinkage is minimal, with a maximum of 1.5% when exposed to 250°C for 30 minutes. The natural color of the fabric is golden yellow, although dyed options are available to meet specific aesthetic preferences. The minimum order quantity is set at 500 meters, but this can be negotiated depending on the customer's needs.
Applications:
Industry Applications
Personal Protective Equipment (PPE)
This sector includes the production of firefighter turnout gear outer shells, welding aprons, foundry suits, cut-resistant gloves and sleeves, as well as anti-slash clothing designed to enhance safety and durability.
Ballistic & Armor
Applications in ballistic and armor technology cover bulletproof vest backing layers, spall liners, helmet shells, and vehicle armor spall guards, aiming to provide maximum protection against impact and penetration.
Industrial Filtration
Industrial filtration solutions include high-temperature dust filter bags and hot gas filtration media, which are commonly used in cement plants, steel manufacturing, and incineration facilities to manage airborne contaminants.
Automotive & Aerospace
In the automotive and aerospace industries, these materials serve as reinforcements in brake pads and clutch facings, as well as in gaskets, thermal insulation blankets, and composite structural layers to enhance performance and safety.
Friction & Sealing
Friction and sealing applications include industrial gaskets, expansion joints, compensators, and high-temperature conveyor belts, all designed to maintain integrity and function under demanding conditions.
Composite Reinforcement
Composite reinforcement involves using prepreg base fabrics for carbon-aramid hybrid composites, honeycomb core face sheets, and sporting goods such as skis, surfboards, and racing hulls, aiming to provide strength and lightweight characteristics.
Electrical Insulation
Electrical insulation applications encompass transformer coil wrapping, motor slot liners, and high-temperature cable wraps, all of which contribute to the safe and efficient operation of electrical equipment.
Customization:
Our Para Aramid Fabric, model number Tdzpaw260, is a high-quality kevlar fabric manufactured in China, certified to meet EN 11612 standards. This anti cut fabric is designed to provide exceptional thermal stability up to 260℃ with only 1.5% shrinkage, ensuring durability and safety in demanding environments.
The fabric features a raw yellow color and is free from melted droplets, enhancing its reliability as an anti cut fabric. Each roll contains about 100 meters of fabric, packaged securely in a nylon bag to maintain product integrity during shipping.
We offer a competitive price of 12 dollars per meter with a minimum order quantity of 1000 meters. Our supply ability is 3000 meters per day, and the typical delivery time is 30 days. Payment terms are T/T for customer convenience.
Please note that the light fastness of this para aramid fabric is rated as bad, so it is recommended for indoor or low-light applications.
Support and Services:
Our Para Aramid Fabric product is supported by comprehensive technical assistance to ensure optimal performance and customer satisfaction. Our support team provides detailed guidance on fabric selection, handling, and application techniques tailored to your specific needs.
We offer expert advice on best practices for cutting, sewing, and integrating Para Aramid Fabric into your products, helping to maximize durability and safety. Additionally, our services include assistance with product specifications, compliance standards, and troubleshooting any issues that may arise during use.
To further support your operations, we provide access to technical datasheets, performance testing results, and recommendations for maintenance and storage. Our commitment is to deliver reliable, high-quality support throughout the lifecycle of your Para Aramid Fabric products.
Packing and Shipping:
Our Para Aramid Fabric is carefully packaged to ensure maximum protection during transit. Each roll is tightly wound and wrapped in a moisture-resistant plastic film to prevent any damage from humidity or dust. The wrapped rolls are then placed in sturdy cardboard tubes or boxes, depending on the size and quantity ordered, to maintain the fabric's integrity and prevent deformation.
For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. Packages are clearly labeled with handling instructions such as "Fragile" and "Keep Dry" to ensure proper care throughout the shipping process. Bulk orders are palletized and shrink-wrapped to facilitate easier handling and to provide additional protection during transportation.
We offer various shipping options including standard, expedited, and freight services to meet different customer needs. Our logistics team coordinates closely with carriers to provide real-time shipping updates and to handle any issues promptly, ensuring that your Para Aramid Fabric arrives safely and on schedule.
FAQ:
Q1: What is the model number of the Para Aramid Fabric?
A1: The model number of the Para Aramid Fabric is Tdzpaw260.
Q2: Where is the Para Aramid Fabric manufactured?
A2: The Para Aramid Fabric is produced in China.
Q3: What certification does the Para Aramid Fabric have?
A3: The Para Aramid Fabric is certified with EN 11612.
Q4: What is the minimum order quantity and price per meter?
A4: The minimum order quantity is 1000 meters, and the price is 12 dollars per meter.
Q5: How is the Para Aramid Fabric packaged and what is the delivery time?
A5: The fabric is packaged with about 100 meters per roll, and the delivery time is 30 days.
Q6: What are the payment terms and supply ability for the Para Aramid Fabric?
A6: Payment is accepted via T/T, and the supply ability is 3000 meters per day.
