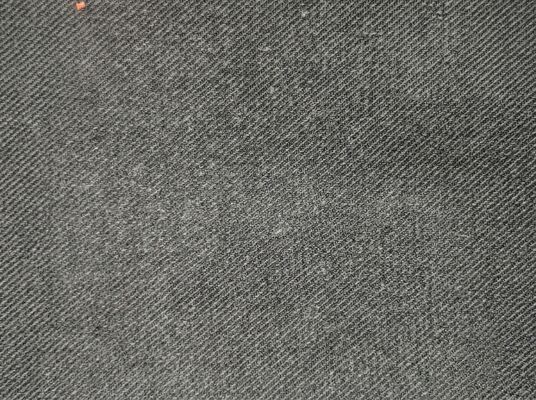

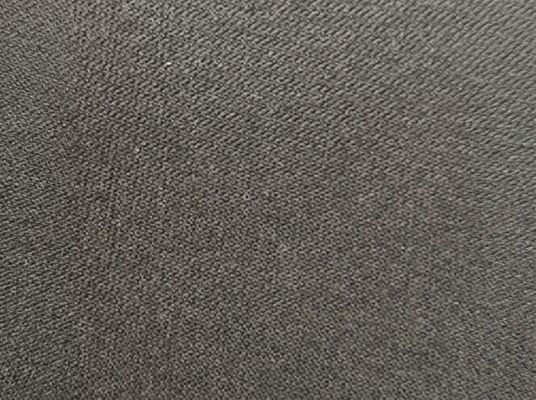

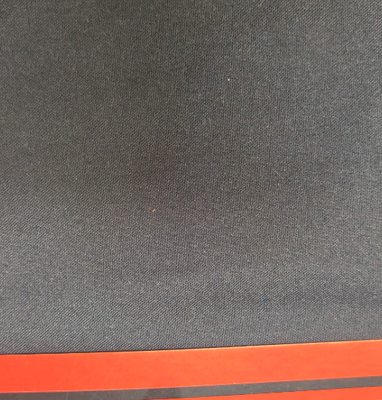

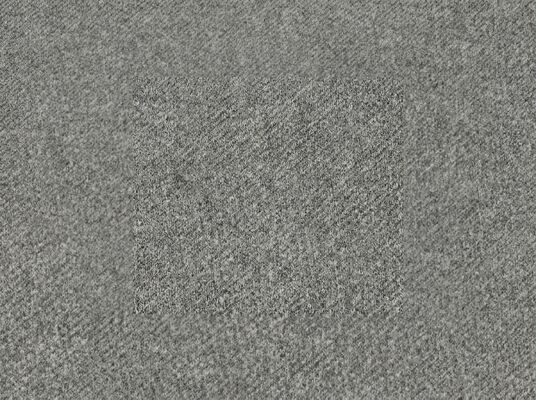

pH value 5-7 kevlar fabric designed in 2 1 twill pattern perfect for aerospace automotive safety equipment and industrial uses

Product Description:

This material boasts inherent flame resistance with a Limiting Oxygen Index (LOI) of 28% or higher. It self-extinguishes immediately once the flame source is removed, exhibiting no melting, dripping, or afterglow. It exceeds stringent standards such as NFPA 701 and ASTM D6413, ensuring permanent thermal protection that remains effective without washing out or degrading over time.

In terms of mechanical strength, it offers exceptional tensile strength of at least 3.2 GPa, which is five times stronger than steel wire on a weight-equivalent basis. This remarkable durability enables it to endure intense mechanical stresses, making it suitable for high-tension applications like ballistic panels, conveyor belts, and structural reinforcements.

The material also features superior abrasion resistance, capable of withstanding 60,000 or more Martindale cycles. Engineered for heavy-duty wear conditions, it provides a service life three to five times longer than traditional polyester or nylon fabrics. This resistance is ideal for friction-intensive applications such as industrial sleeves, gaskets, and protective covers.

With high cut resistance classified as EN388 Level D and ANSI A4–A5 equivalent, its tightly woven structure effectively resists slashing and cutting. This makes it an excellent choice for protective gloves, sleeves, aprons, and equipment shielding in industries like metal fabrication, glass handling, and automotive manufacturing.

The fabric maintains excellent thermal stability, with a continuous operating temperature up to 250°C and a decomposition temperature exceeding 500°C. It preserves mechanical integrity under extreme heat without shrinking or degrading, making it reliable in high-temperature environments.

Additionally, it exhibits good chemical resistance, effectively withstanding most organic solvents, oils, and acids, excluding concentrated sulfuric and nitric acids. This chemical durability allows it to perform reliably in challenging chemical processing and filtration settings.

Despite its strength and protective qualities, the material remains lightweight at 260 grams per square meter. It offers an optimal balance of strength and weight, being thin enough for use in multi-layer composite laminations yet robust enough for standalone applications.

Features:

Para-aramid woven fabric weighing 260 grams per square meter (gsm) sets the benchmark in the realm of high-performance industrial textiles. Crafted entirely from 100% para-aramid fibers—equivalent in quality to Kevlar® grade—this fabric seamlessly integrates natural flame resistance, exceptional tensile strength, and outstanding abrasion resistance within a lightweight structure.

Unlike flame-retardant fabrics that rely on surface treatments and may degrade after multiple washes, the fire resistance of para-aramid is intrinsic and molecular, engineered directly into its polymer chains. When exposed to extreme heat, the material chars without melting, dripping, or fueling combustion, thereby providing dependable protection throughout the product’s lifespan.

The 260 gsm weight category offers an optimal balance, being substantial enough to meet the demands of rigorous protective applications, while still maintaining the flexibility and lightness necessary for comfortable wearable equipment and adaptable composite layups. Additionally, the fabric’s plain or twill weave ensures consistent strength in both the warp and weft directions, effectively reducing the directional vulnerabilities common in unidirectional materials.

Technical Parameters:

This document outlines the key technical properties and performance standards of our para-aramid fiber fabric. The material is composed entirely of 100% Para-Aramid Fiber, ensuring high strength and durability.

The fabric has a weight of approximately 260 grams per square meter, with a tolerance of plus or minus 10 grams, measured according to the ISO 3801 standard. It is available in customizable weave types, including plain and twill patterns, with thickness ranging from about 0.35 to 0.40 millimeters as per ISO 5084 specifications.

Widths of the fabric can be tailored between 100 and 160 centimeters to meet specific requirements. Regarding mechanical strength, the material exhibits a tensile strength of at least 2,500 Newtons per 5 centimeters in the warp direction, and no less than 2,200 Newtons per 5 centimeters in the weft direction, both measured by the ISO 13934-1 method.

Tear resistance is impressive, with the fabric sustaining a minimum of 150 Newtons in the warp and 130 Newtons in the weft directions, conforming to ISO 13937-2 standards. The Limiting Oxygen Index (LOI) is rated at 28% or higher, according to ASTM D2863, which contributes to the material’s flame retardant properties.

The fiber can continuously operate in extreme temperatures ranging from -50°C up to +250°C, with a decomposition temperature exceeding 500°C as determined by thermogravimetric analysis (TGA). It also offers exceptional abrasion resistance, enduring over 60,000 cycles under Martindale testing conditions based on ISO 12947-2.

Cut resistance levels correspond to EN388 Level D and ANSI A4 standards (EN388:2016 and ANSI 105 respectively). Heat shrinkage is limited to a maximum of 1.5% when exposed to 250°C for 30 minutes. The natural color of the fabric is a golden yellow, though dyed alternatives are available on request.

The minimum order quantity (MOQ) is typically set at 500 meters, though this can be negotiated depending on customer needs.

Applications:

Customization:

Our Para Aramid Fabric, branded as Para Aramid and model number Tdzpaw260, is a high-quality aramid fabric sourced from China. This para aramid fabric meets the stringent EN 11612 certification standards, ensuring excellent protection and performance.

We offer product customization services with a minimum order quantity of 1000 meters, priced competitively at 12 dollars per meter. Each roll is carefully packaged with about 100 meters per roll to maintain product integrity during shipping.

With a supply ability of 3000 meters per day and a delivery time of 30 days, we ensure timely fulfillment of your orders. Payment terms are flexible with T/T accepted for your convenience.

This para aramid fabric features staple para aramid fiber, providing superior thermal stability up to 260℃ with only 1.5% variation. It has zero after flame time and does not produce melted droplets, enhancing safety in high-temperature applications.

Available in raw yellow color, our aramid fabric is ideal for various protective clothing and industrial uses where durability and heat resistance are critical.

Support and Services:

Our Para Aramid Fabric product is designed to provide exceptional strength, durability, and resistance to heat and abrasion. For optimal performance and longevity, it is important to follow proper handling and maintenance guidelines.

When working with Para Aramid Fabric, avoid exposure to strong acids, alkalis, and prolonged UV radiation, as these can degrade the material’s properties. Always store the fabric in a cool, dry place away from direct sunlight and moisture to maintain its integrity.

For cutting and sewing, use sharp tools to ensure clean edges and prevent fraying. It is recommended to use industrial sewing machines with appropriate needles and threads designed for high-performance technical fabrics.

Cleaning should be done using mild detergents and cold water. Avoid bleach, fabric softeners, and high-temperature washing or drying, as these can damage the fibers. Air drying is preferred to maintain the fabric's mechanical properties.

If you require customization, technical advice, or assistance with product selection, our expert support team is available to help you achieve the best results for your specific application.

For warranty information, please refer to the terms and conditions provided at the time of purchase. Our commitment is to ensure customer satisfaction through high-quality products and responsive technical support services.

Packing and Shipping:

The Para Aramid Fabric is carefully packaged to ensure maximum protection during transportation. Each roll of fabric is tightly wound and wrapped in a moisture-resistant plastic film to prevent any damage from humidity or dust. The wrapped rolls are then placed in sturdy, double-walled cardboard boxes or wooden crates depending on the order size and destination.

For shipping, the packages are securely palletized and strapped to prevent movement during transit. We use reliable carriers to deliver the products safely to your location, with options for air, sea, or land freight based on your requirements. All shipments include detailed documentation and tracking information to ensure timely and transparent delivery.

FAQ:

Q1: What is the brand name and model number of this Para Aramid Fabric?

A1: The brand name is Para Aramid and the model number is Tdzpaw260.

Q2: Where is the Para Aramid Fabric manufactured?

A2: This fabric is made in China.

Q3: What certification does the Para Aramid Fabric have?

A3: The fabric is certified with EN 11612, ensuring its protective properties against heat and flame.

Q4: What is the minimum order quantity and the price per meter?

A4: The minimum order quantity is 1000 meters, and the price is 12 dollars per meter.

Q5: How is the Para Aramid Fabric packaged and what is the delivery time?

A5: The fabric is packaged with about 100 meters per roll, and the delivery time is approximately 30 days.

Q6: What are the payment terms and supply ability for this product?

A6: Payment terms are T/T (Telegraphic Transfer), and the supply ability is 3000 meters per day.
