Product Description:
Inherent Flame Resistance (LOI ≥ 28%)
This material is self-extinguishing once the flame source is removed, exhibiting no melting, dripping, or afterglow. It surpasses the requirements set by NFPA 701 and ASTM D6413 standards, ensuring permanent thermal protection that remains effective without washing out or degrading over time.
Exceptional Tensile Strength (≥ 3.2 GPa)
With a tensile strength five times greater than that of steel wire on a weight-for-weight basis, this fabric is designed to endure extreme mechanical stress. It is perfectly suited for high-tension applications including ballistic panels, conveyor belts, and structural reinforcements.
Superior Abrasion Resistance (≥ 60,000 Martindale cycles)
Engineered to withstand heavy-duty wear, this material offers a service life that is three to five times longer than traditional polyester or nylon fabrics when used in environments with intense friction. Typical uses include industrial sleeves, gaskets, and protective covers.
High Cut Resistance (EN388 Level D / ANSI A4–A5 Equivalent)
The tightly woven structure of the fabric provides strong resistance against slashing and cutting. This makes it an excellent choice for protective equipment such as gloves, sleeves, aprons, and shields, particularly in industries like metal fabrication, glass handling, and automotive manufacturing.
Excellent Thermal Stability
Capable of operating continuously at temperatures up to 250°C, with a decomposition temperature exceeding 500°C, this material retains its mechanical properties under extreme heat conditions without shrinking or degrading.
Chemical Resistance
It exhibits good resistance to a variety of organic solvents, oils, and acids, except for concentrated sulfuric and nitric acids. This feature makes it reliable for use in demanding chemical processing and filtration settings.
Lightweight at 260 g/m²
Offering an optimal balance between strength and weight, the fabric is sufficiently thin to allow for multi-layer composite lamination, yet robust enough to be utilized in standalone applications.
Features:

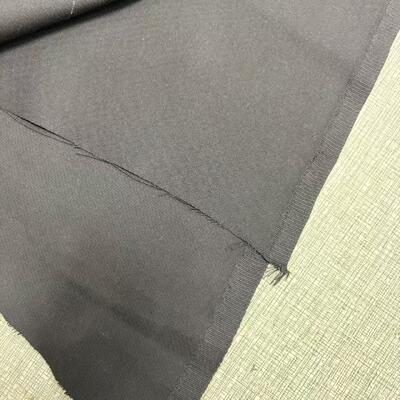

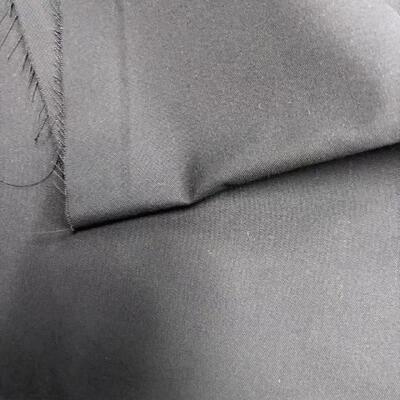

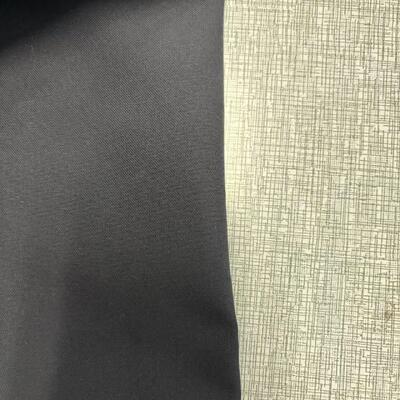

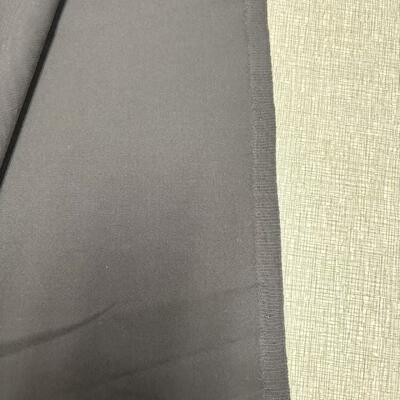

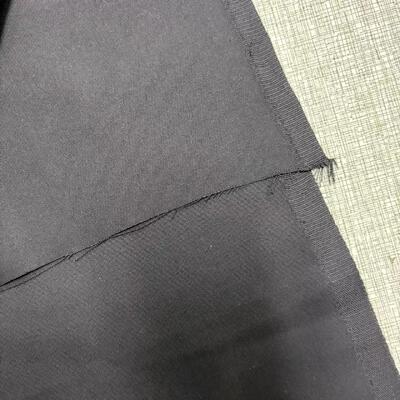

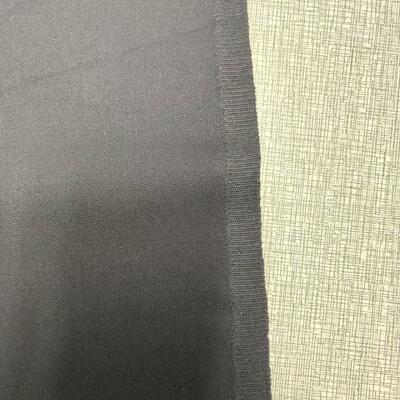

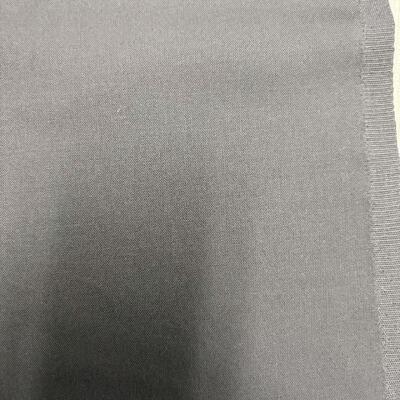

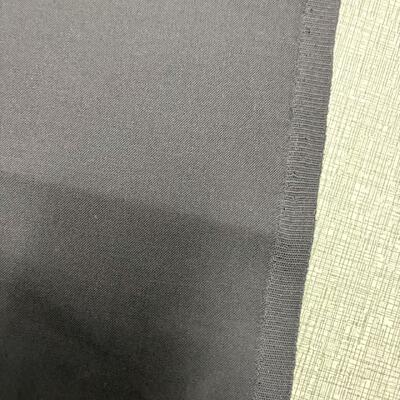

Para-aramid woven fabric weighing 260 gsm is considered the benchmark for high-performance industrial textiles. Manufactured entirely from 100% para-aramid fibers, equivalent in quality to Kevlar®, this fabric uniquely combines natural flame resistance, exceptional tensile strength, and excellent abrasion resistance within a lightweight design.
Unlike flame-retardant fabrics that rely on chemical treatments and may lose their protective qualities after multiple washes, the fire resistance of para-aramid is inherent at the molecular level. It is integrated directly into the polymer chain, ensuring the material chars under extreme heat but never melts, drips, or sustains combustion. This guarantees consistent and dependable protection throughout the fabric’s lifespan.
The 260 gsm weight category offers an optimal balance: it is sufficiently heavy to meet the requirements of demanding protective uses, yet remains light and flexible enough for comfortable wearable equipment and adaptable composite layering. Its plain or twill weave structure provides consistent strength across both the warp and weft directions, effectively reducing the directional vulnerabilities common in unidirectional materials.
Technical Parameters:
Technical Specifications
This document outlines the key technical specifications of our product, focusing on its material properties, performance metrics, and testing standards to ensure quality and reliability.
The fabric is made from 100% Para-Aramid Fiber, known for its exceptional strength and durability. It has a weight of approximately 260 ± 10 grams per square meter, conforming to ISO 3801 standards. The weave type can be customized, available in plain or twill patterns. Thickness ranges between 0.35 and 0.40 millimeters according to ISO 5084.
Dimensions are flexible, with width customizable from 100 to 160 centimeters. In terms of mechanical strength, the material boasts a tensile strength of at least 2,500 N per 5 cm in the warp direction and 2,200 N per 5 cm in the weft direction, both tested under ISO 13934-1. Tear resistance is equally impressive, with minimum values of 150 N (warp) and 130 N (weft), compliant with ISO 13937-2.
The Limiting Oxygen Index (LOI) is no less than 28%, measured using ASTM D2863, indicating excellent flame-retardant properties. The fabric operates continuously within a temperature range from -50°C to +250°C and decomposes only above 500°C, as determined by Thermogravimetric Analysis (TGA).
Abrasion resistance exceeds 60,000 cycles according to the Martindale test (ISO 12947-2), while cut resistance meets high safety standards as classified by EN388 Level D and ANSI A4 (EN388:2016 / ANSI 105). Heat shrinkage is minimal, with a maximum of 1.5% at 250°C after 30 minutes.
The natural color of the fabric is golden yellow, with dyed options also available to meet various aesthetic requirements. The minimum order quantity is 500 meters, though this is negotiable to accommodate different client needs.
Applications:
Industry Applications
The Personal Protective Equipment (PPE) industry utilizes materials for a variety of safety gear including outer shells for firefighter turnout gear, welding aprons, foundry suits, as well as cut-resistant gloves and sleeves. Additionally, anti-slash clothing is an important application area to enhance worker protection.
In the realm of Ballistic and Armor protection, materials are employed in the backing layers of bulletproof vests, spall liners, helmet shells, and vehicle armor spall guards. These components provide critical defense against ballistic threats.
The Industrial Filtration sector demands high-performance materials for high-temperature dust filter bags and hot gas filtration media. These are commonly used in industries such as cement manufacturing, steel production, and incineration plants to ensure cleaner emissions and improved efficiency.
Materials serve vital functions in the Automotive and Aerospace industries as well. Applications include reinforcement in brake pads, clutch facings, various gaskets, thermal insulation blankets, and composite structural layers that contribute to vehicle performance and safety.
Within the Friction and Sealing industry, products are utilized to manufacture industrial gaskets, expansion joints, compensators, and high-temperature conveyor belts. These components are essential for maintaining system integrity and durability under demanding conditions.
The Composite Reinforcement field benefits from materials that act as prepreg base fabrics for carbon-aramid hybrid composites. They are also used as honeycomb core face sheets and in the production of sporting goods such as skis, surfboards, and racing hulls, enhancing strength and performance.
Electrical Insulation applications include transformer coil wrapping, motor slot liners, and high-temperature cable wraps. These materials ensure the safe and efficient operation of electrical equipment by providing reliable insulation under harsh conditions.
Customization:
Our Para Aramid Fabric, branded as Para Aramid and model number Tdzpaw260, is a high-quality kevlar fabric designed specifically for fireproof fabric applications. Originating from China and certified under EN 11612, this fabric meets strict safety and performance standards suitable for firefighter use.
We offer a minimum order quantity of 1000 meters, priced competitively at 12 dollars per meter. Each roll is carefully packaged with about 100 meters per roll in durable nylon bags to ensure product integrity during transport and storage.
With a supply ability of 3000 meters per day, we can fulfill large orders efficiently. Delivery time is approximately 30 days after order confirmation. Payment terms are T/T for your convenience.
The para aramid fabric features a water washing dimensional change rate of only 3%, ensuring stability in various conditions. Although the light fastness is rated as bad, the fabric boasts an impressive break strength of 2800/2500N, providing durability and reliability in demanding environments.
Choose our Para Aramid Fabric for superior fireproof fabric solutions that combine safety, durability, and quality.
Support and Services:
Our Para Aramid Fabric product is supported by a dedicated technical support team committed to providing expert assistance and comprehensive services. We offer detailed product information, application guidance, and troubleshooting support to ensure optimal performance in your specific use case.
Technical support includes advice on fabric selection, handling, cutting, and maintenance to maximize durability and safety. We also provide customized solutions tailored to unique project requirements, including fabric treatments and specifications.
In addition, our services encompass quality assurance, certification documentation, and compliance assistance to meet industry standards. Training sessions and technical workshops are available to help your team understand the best practices for working with Para Aramid Fabrics.
For ongoing support, we offer regular updates on product innovations and enhancements, ensuring you have access to the latest advancements in Para Aramid technology.
Packing and Shipping:
Product Packaging:
The Para Aramid Fabric is carefully rolled and wrapped in protective plastic to prevent moisture and dust contamination. Each roll is then placed in a sturdy cardboard tube or box to maintain its shape and ensure safe handling during transportation. For bulk orders, multiple rolls are securely packed together with additional cushioning materials to avoid damage.
Shipping:
We offer reliable shipping options to ensure timely delivery of Para Aramid Fabric products. All packages are clearly labeled with product information and handling instructions. Depending on the destination, shipments can be sent via air, sea, or land freight. Tracking information will be provided for all orders, and our logistics partners comply with international shipping standards to guarantee the safe arrival of the fabric.
FAQ:
Q1: What is the brand and model number of this Para Aramid Fabric?
A1: The brand name is Para Aramid and the model number is Tdzpaw260.
Q2: Where is the Para Aramid Fabric manufactured?
A2: This fabric is made in China.
Q3: Does the Para Aramid Fabric have any certifications?
A3: Yes, it is certified with EN 11612, which certifies its protective properties.
Q4: What is the minimum order quantity and price per meter?
A4: The minimum order quantity is 1000 meters, and the price is 12 dollars per meter.
Q5: How is the Para Aramid Fabric packaged and what is the delivery time?
A5: The fabric is packaged in rolls of about 100 meters each, and the delivery time is approximately 30 days.
Q6: What are the payment terms and supply ability for this product?
A6: Payment is accepted via T/T (Telegraphic Transfer), and the supply ability is 3000 meters per day.
