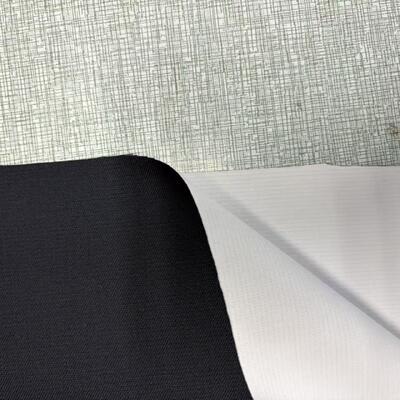

025mm Thickness Fire Proof Material Width 150cm Suitable for Industrial Applications Durable and Fire Proof Solution

Certification
China Jiangsu Tiandizao Newmaterial technology Co.,Ltd certification
I'm Online Chat Now

025mm Thickness Fire Proof Material Width 150cm Suitable for Industrial Applications Durable and Fire Proof Solution

025mm Thickness Fire Proof Material Width 150cm Suitable for Industrial Applications Durable and Fire Proof Solution
Product Details:
Place of Origin: china
Brand Name: aramid fabric
Certification: EN 11612
Model Number: TDZ200 FRMA
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: 11 dollars per meter
Packaging Details: about 90meters per roll .
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 3000 meters per day

025mm Thickness Fire Proof Material Width 150cm Suitable for Industrial Applications Durable and Fire Proof Solution

Description
Breakstrength: 900N/1200N Fabri Style : Woven Twill
Weight : 240gsm Thickness: 0.25MM
After Glow Time : 0.8s Name: Aramid FR Viscose Blended Fabric
Width : 150cm Color: Navy Blue
Highlight:

025mm fireproof meta aramid fabric

,

150cm wide industrial fireproof material

,

durable fireproof solution for industrial applications

Product Description:

Aramid fabric offers outstanding flame retardant properties, making it an ideal choice for safety applications. It is non-melting and non-dripping, ensuring that when exposed to fire, it does not produce harmful molten droplets. Additionally, it burns without releasing toxic substances, contributing to a safer environment during fire incidents. The fabric also boasts excellent chemical resistance, enhancing its durability and performance in harsh conditions.

Our aramid fabric production incorporates both domestically sourced and imported meta-aramid fibers, combined with para-aramid and conductive fibers to optimize performance. The materials comply with various stringent standards including EN532, EN11612, EN14116, GA2002-10, GB8965-1998, and GB12014-89, ensuring high quality and reliability.

We offer a range of fabric weights from 120 grams per square meter up to 300 grams per square meter. The most common weights we provide are 150g/m², 180g/m², 220g/m², and 260g/m². The fabric is available in a diverse palette of colors such as navy blue, royal blue, black, green, dark green, light blue, red, orange, yellow, and khaki.

This versatile aramid fabric finds wide applications including flame-retardant sofas, fire-retardant curtains, protective fire suits, military uniforms, and various industrial uses. It is highly suitable for the aviation sector, petrochemical industry, electric power industry, and many other fields requiring superior fire protection and chemical resistance.


Applications:

Aramid Fabric Specifications

The table below presents detailed specifications for different types of aramid fabrics. These materials are known for their superior strength, heat resistance, and durability. Aramid fabrics are widely used in protective clothing, aerospace, and other demanding applications.

Aramid Fabric Details

The aramid fabrics listed include various blends and weaves, each with specific ingredient compositions and physical characteristics. The fabrics differ in type of aramid used, yarn structure, weight, and width.

Item Ingredients Weave Yarn Weight (g/m²) Weight (oz/yd²) Width (inches)
Aramid Cloth 93% meta aramid, 5% para aramid, 2% antistatic 1/1 plain 40s/2 150 4.5 58/60
Aramid Cloth 98% meta aramid, 2% antistatic 2/1 twill 32s/2 220 6.5 58/60
Aramid Cloth 93% meta aramid, 5% para aramid, 2% antistatic 2/1 twill 35s/2 210 6.2 58/60
Aramid Cloth 2/1 twill 35s/2 260 7.7 58/60
Aramid Blended Fabrics

In addition to pure aramid fabrics, there are blends consisting of meta aramid combined with flame-resistant viscose fibers. These blended fabrics offer enhanced functionality, balancing strength with comfort and flame resistance.

Item Ingredients Weave Yarn Weight (g/m²) Weight (oz/yd²) Width (inches)
Aramid Adhesive 50% meta aramid, 50% FR viscose 1/1 plain 28s/1 120 3.5 63
Aramid Adhesive 50% meta aramid, 50% FR viscose 1/1 plain 26s/1 130 3.8 63
Aramid Adhesive 35% meta aramid, 65% FR viscose 1/1 plain 35s/2 170 5.0 63
Aramid Adhesive 65% meta aramid, 35% FR viscose 2/1 twill 40s/2 180 5.3 58/60
Aramid Adhesive 65% meta aramid, 35% FR viscose 2/1 twill 38s/2 205 6.0 58/60
Aramid Adhesive 50% meta aramid, 50% FR viscose 2/1 twill 28s/2 255 7.5 58/60

Each fabric type’s specifications—such as yarn count, weave type, and weight—play an important role in determining its end-use applications. Selecting the right fabric depends on the balance between protection, flexibility, and comfort required.


Customization:

Our Meta Aramid Fabric product, branded as aramid fabric with model number TDZ200 FRMA, is designed to meet the highest standards of fire proof protection. Originating from China, this para aramid fabric is certified to EN 11612, ensuring superior safety and performance.

The fabric is woven in a twill style, providing excellent durability and comfort. It boasts impressive heat resistance of over 260 ℃ and an after glow time of just 0.8 seconds, making it ideal for protective clothing applications.

With UV resistance rated at level 4-5, this meta aramid fabric offers reliable protection against harmful ultraviolet rays. Each roll contains approximately 90 meters, and the minimum order quantity is 1000 meters, priced competitively at 11 dollars per meter.

We have a strong supply ability of 3000 meters per day, with a delivery time of 60 days. Payment terms are T/T, ensuring a smooth and secure transaction process.

Choose our fire proof meta aramid fabric for your protective clothing needs – combining advanced material technology and reliable performance to keep you safe.


Support and Services:

For technical support and services related to Meta Aramid Fabric, we offer comprehensive assistance to ensure optimal performance and satisfaction. Our expert team is available to provide guidance on product selection, application techniques, and maintenance procedures.

We also provide detailed technical documentation, including datasheets and safety information, to help you understand the properties and best practices for using Meta Aramid Fabric. Should you encounter any issues or require custom solutions, our support staff is ready to collaborate with you to meet your specific needs.

In addition, we offer training sessions and workshops to educate users on the proper handling and utilization of Meta Aramid Fabric, enhancing safety and efficiency in your operations.

For warranty information and service requests, please refer to the terms and conditions provided with your purchase. We are committed to delivering high-quality support throughout the lifecycle of our Meta Aramid Fabric products.


Packing and Shipping:

Our Meta Aramid Fabric is carefully packaged to ensure maximum protection during transit. Each roll of fabric is tightly wound and wrapped with a protective plastic film to prevent moisture, dust, and damage.

The wrapped fabric rolls are then placed in sturdy cardboard tubes or boxes, depending on the order size, to provide additional structural support. For bulk orders, the rolls are securely stacked on pallets and shrink-wrapped to maintain stability.

We use reliable shipping carriers to deliver your Meta Aramid Fabric safely and on time. Tracking information will be provided once your order has been dispatched, allowing you to monitor the shipment until it reaches your location.

If you have any special packaging or shipping requirements, please contact our customer service team, and we will do our best to accommodate your needs.


FAQ:

Q1: What is the brand name and model number of the Meta Aramid Fabric?

A1: The brand name is Aramid Fabric and the model number is TDZ200 FRMA.

Q2: Where is the Meta Aramid Fabric manufactured?

A2: The Meta Aramid Fabric is made in China.

Q3: What certification does the Meta Aramid Fabric have?

A3: This fabric is certified with EN 11612, ensuring its flame-resistant properties.

Q4: What is the minimum order quantity and price per meter for the Meta Aramid Fabric?

A4: The minimum order quantity is 1000 meters, and the price is 11 dollars per meter.

Q5: How is the Meta Aramid Fabric packaged and what is the delivery time?

A5: The fabric is packaged approximately 90 meters per roll, and the delivery time is about 60 days.

Q6: What are the payment terms and supply ability for this product?

A6: The payment terms are T/T (Telegraphic Transfer), and the supply ability is 3000 meters per day.
