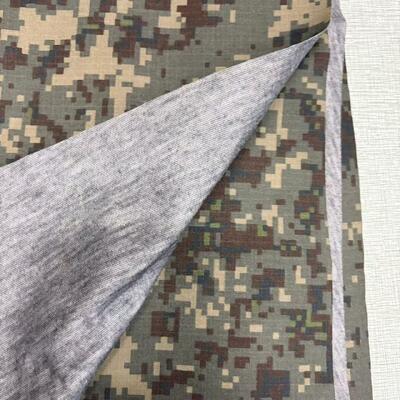

Tear Strength 94 80N Meta Aramid Fabric 240gsm Weight 150cm Width Durable Flame Resistant Material for Protective Clothing

Product Description:

Aramid fabric is renowned for its flame-retardant properties, exhibiting non-melting and non-dropping characteristics when exposed to fire. It burns without releasing toxic substances, ensuring safety in various applications. Additionally, this fabric boasts excellent chemical resistance, making it suitable for demanding environments. It is an ideal material for manufacturing flame-retardant sofas, fire-retardant curtains, and other related products.

Our aramid fabric is produced using either domestically sourced or imported meta-aramid fibers, combined with para-aramid and conductive fibers to enhance performance. The fabrics comply with a range of important safety and quality standards, including EN532, EN11612, EN14116, GA2002-10, GB8965-1998, and GB12014-89. This ensures reliability and effectiveness in critical situations.

The fabric is available in various weights, ranging from 120 grams per square meter up to 300 grams per square meter. Common weights include 150g/m², 180g/m², 220g/m², and 260g/m², catering to different needs and specifications. Multiple color options are offered, such as navy blue, royal blue, black, green, dark green, light blue, red, orange, yellow, and khaki.

Due to its outstanding fire-resistant qualities and durability, this aramid fabric is widely applied in the production of fire suits, uniforms for military troops, and protective clothing in various sectors including aviation, petrochemical industries, and electric power industries. Its versatility and compliance with stringent standards make it a trusted choice across multiple high-risk fields.

Applications:

This document presents detailed specifications for various types of aramid fabrics. The fabrics are categorized primarily into two groups: pure aramid fabric and aramid blended fabric. Each fabric type is described by its composition, weave structure, yarn count, weight, and width.

The pure aramid fabrics consist mainly of meta-aramid and para-aramid fibers with a small percentage of antistatic components. These fabrics utilize different weave structures such as plain and twill weaves and vary in yarn counts and weights to suit various applications.

• Aramid Cloth with 93% meta-aramid, 5% para-aramid, and 2% antistatic fibers; woven in 1/1 plain weave with 40s/2 yarn; weight is 150 g/m² (4.5 oz/yd²); fabric width is 58-60 inches.
• Aramid Cloth composed of 98% meta-aramid and 2% antistatic; 2/1 twill weave with 32s/2 yarn; weight of 220 g/m² (6.5 oz/yd²); width 58-60 inches.
• Aramid Cloth containing 93% meta-aramid, 5% para-aramid, and 2% antistatic; woven in 2/1 twill with 35s/2 yarn; weight 210 g/m² (6.2 oz/yd²); width 58-60 inches.
• Aramid Cloth featuring 2/1 twill weave with 35s/2 yarn; weight reaches 260 g/m² (7.7 oz/yd²); width remains 58-60 inches.

Aramid blended fabrics are mixed with flame-retardant (FR) viscose in varying proportions to enhance performance characteristics such as flame resistance and durability. These fabrics are crafted using plain and twill weave structures and come in different yarn counts and weights, also available in standard widths.

• Aramid Adhesive fabric containing 50% meta-aramid and 50% FR viscose; 1/1 plain weave with 28s/1 yarn; 120 g/m² (3.5 oz/yd²); width 63 inches.
• Aramid Adhesive with 50% meta-aramid, 50% FR viscose; 1/1 plain weave using 26s/1 yarn; 130 g/m² (3.8 oz/yd²); width 63 inches.
• Aramid Adhesive fabric mixed with 35% meta-aramid and 65% FR viscose; 1/1 plain weave with 35s/2 yarn; weight 170 g/m² (5 oz/yd²); width 63 inches.
• Aramid Adhesive blend having 65% meta-aramid and 35% FR viscose; woven in 2/1 twill with 40s/2 yarn; 180 g/m² (5.3 oz/yd²); width 58-60 inches.
• Aramid Adhesive fabric with 65% meta-aramid and 35% FR viscose; 2/1 twill weave employing 38s/2 yarn; weight of 205 g/m² (6 oz/yd²); width 58-60 inches.
• Aramid Adhesive comprising 50% meta-aramid and 50% FR viscose; fabricated in 2/1 twill weave with 28s/2 yarn; weight of 255 g/m² (7.5 oz/yd²); width 58-60 inches.

Customization:

Our Meta Aramid Fabric, branded as Aramid Fabric with model number TDZ200 FRMA, is a high-quality para aramid fabric designed to meet your fire proof needs. Originating from China, this fabric is certified under EN 11612, ensuring excellent flame resistance and safety standards.

With a weight of 240gsm and a width of 150cm, our aramid fabric offers superior durability and comfort. It features an after glow time of only 0.8 seconds and an after flame time of 0 seconds, making it highly reliable for protective applications.

We offer this fire proof aramid babric at a competitive price of 11 dollars per meter, with a minimum order quantity of 1000 meters. Each roll contains approximately 90 meters, carefully packaged to maintain product quality during transit.

Our supply ability is 3000 meters per day, and the typical delivery time is 60 days. Payment terms are T/T, ensuring a smooth and secure transaction process. Choose our para aramid fabric for your next project to ensure safety, quality, and performance.

Support and Services:

For technical support and services related to Meta Aramid Fabric, please refer to the product documentation provided with your purchase. Our dedicated support team is available to assist with installation guidance, maintenance recommendations, and troubleshooting.

We offer comprehensive services including fabric testing, certification assistance, and custom fabrication advice to ensure optimal performance in your specific application. For detailed technical data sheets, safety information, and handling instructions, please consult our online resources or product manuals.

Should you require further assistance, our specialists can provide expert consultation on product selection, compliance standards, and durability assessments to meet your project requirements effectively.

Packing and Shipping:

Our Meta Aramid Fabric is carefully packaged to ensure it arrives in perfect condition. Each roll is tightly wound and wrapped in protective plastic to prevent moisture, dust, and damage during transit. The fabric is then placed in sturdy cardboard boxes or reinforced shipping tubes, depending on the order size, to provide additional protection.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. We also offer customized packaging solutions for bulk orders or special requirements. Whether shipping domestically or internationally, our packaging and shipping process is designed to maintain the high quality and integrity of the Meta Aramid Fabric from our facility to your doorstep.

FAQ:

Q1: What is the brand and model number of this Meta Aramid Fabric?

A1: The brand name is Aramid Fabric and the model number is TDZ200 FRMA.

Q2: Where is the Meta Aramid Fabric manufactured?

A2: This fabric is made in China.

Q3: What certifications does the Meta Aramid Fabric have?

A3: The fabric is certified with EN 11612, ensuring it meets standards for protective clothing against heat and flame.

Q4: What is the minimum order quantity and pricing for this fabric?

A4: The minimum order quantity is 1000 meters, priced at 11 dollars per meter.

Q5: How is the Meta Aramid Fabric packaged and what is the delivery time?

A5: The fabric is packaged in rolls of about 90 meters each. The delivery time is approximately 60 days.

Q6: What are the payment terms and supply capacity for the Meta Aramid Fabric?

A6: Payment is accepted via T/T (Telegraphic Transfer), and the supply ability is 3000 meters per day.
