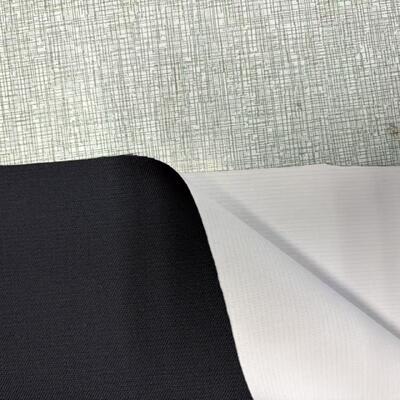

Flame Resistance less than 2 Second aramid babric UV Resistance level 4 to 5 fabric for heat resistant clothing and protective gear

Product Description:

Aramid fabric is renowned for its outstanding flame-retardant properties. It is designed to be non-melting and non-dropping, ensuring safety during exposure to fire. The fabric burns in a non-toxic manner and exhibits excellent chemical resistance, making it an ideal choice for various applications such as flame-retardant sofas, fire-resistant curtains, and other specialized fields.

Our aramid fabric utilizes both domestic and imported meta-aramid fibers, enhanced with para-aramid and conductive fibers to improve performance. The fabric meets rigorous safety and quality standards including EN532, EN11612, EN14116, GA2002-10, GB8965-1998, and GB12014-89, ensuring reliable protection in critical environments.

The fabric is available in a wide range of weights, from 120 grams per square meter up to 300 grams per square meter. Our standard offerings include 150g/m², 180g/m², 220g/m², and 260g/m², catering to various durability and application requirements.

A diverse color selection is available, including navy blue, royal blue, black, green, dark green, light blue, red, orange, yellow, and khaki. This variety allows for customization in both functional and aesthetic aspects.

Due to its excellent fire-resistant qualities, this aramid fabric is widely used in manufacturing fire suits, uniforms for military personnel, and equipment within the aviation, petrochemical, and electric power industries. Its versatility makes it suitable for any situation requiring reliable fire protection.

Applications:

The following table provides detailed specifications for different types of aramid fabrics. These fabrics vary in composition, weave pattern, yarn type, weight, and width to suit various industrial and protective applications.

The aramid fabric category includes several types of cloth made primarily from meta and para aramid fibers. They feature different weave organizations such as plain and twill weaves, and their yarn counts and fabric weights vary accordingly.

• Aramid Cloth composed of 93% meta aramid, 5% para aramid, and 2% antistatic fibers, woven in a 1/1 plain weave with 40s/2 yarn count. It weighs 150 g/m² (4.5 oz/yd²) and has a fabric width of 58 to 60 inches.
• Aramid Cloth with 98% meta aramid and 2% antistatic fibers arranged in a 2/1 twill weave using 32s/2 yarn. This fabric weighs 220 g/m² (6.5 oz/yd²) and shares the same width range.
• A blend containing 93% meta aramid, 5% para aramid, and 2% antistatic fibers, also in 2/1 twill weave with 35s/2 yarn, weighing 210 g/m² (6.2 oz/yd²).
• Another variation of aramid cloth features a 2/1 twill weave with 35s/2 yarn and a higher weight of 260 g/m² (7.7 oz/yd²), maintaining the standard width of 58 to 60 inches.

In addition to pure aramid fabrics, there are blended versions that combine meta aramid fibers with flame-retardant (FR) viscose. These blends are available in various compositions, weave patterns, yarn sizes, and weights to provide a balance between performance and comfort.

• Aramid adhesive fabric with a 50/50 ratio of meta aramid to FR viscose, featuring a 1/1 plain weave with 28s/1 yarns, weighs 120 g/m² (3.5 oz/yd²), and has a width of 63 inches.
• The same 50/50 blend with a slightly larger 26s/1 yarn count results in a weight of 130 g/m² (3.8 oz/yd²), also at 63 inches wide.
• A blend consisting of 35% meta aramid and 65% FR viscose in 1/1 plain weave with 35s/2 yarn weighs 170 g/m² (5 oz/yd²).
• With a 65/35 ratio of meta aramid to FR viscose, fabrics woven in 2/1 twill with 40s/2 and 38s/2 yarns weigh 180 g/m² (5.3 oz/yd²) and 205 g/m² (6 oz/yd²) respectively. Their width measures between 58 and 60 inches.
• Lastly, a 50/50 blend in 2/1 twill weave with 28s/2 yarn has the highest weight among the blends at 255 g/m² (7.5 oz/yd²), also measuring 58 to 60 inches wide.

These specifications serve as a comprehensive guide for selecting the right aramid material based on application requirements such as strength, weight, and fabric width.

Customization:

Our Meta Aramid Fabric product, branded as aramid fabric with model number TDZ200 FRMA, is a high-quality fire proof textile designed to meet rigorous safety standards. Originating from China and certified under EN 11612, this fabric ensures exceptional flame resistance with a burn time of less than 2 seconds.

Composed of 93% meta aramid, 5% para aramid fabric, and 2% antistatic fibers, the material offers superior durability and protection. Featuring a navy blue color and UV resistance rated between levels 4 and 5, it is ideal for applications requiring robust tear strength of 94/80N.

We supply this aramid babric at a competitive price of 11 dollars per meter, with a minimum order quantity of 1000 meters. Each roll contains approximately 90 meters, and we can deliver up to 3000 meters per day with a delivery time of 60 days. Payment terms are T/T for your convenience.

Our Meta Aramid Fabric is perfect for industries that demand fire proof and high-performance materials, offering reliable protection and long-lasting performance.

Support and Services:

For technical support and services related to Meta Aramid Fabric, our team of experts is available to assist with product selection, application guidance, and troubleshooting. We provide detailed product datasheets, safety information, and usage recommendations to ensure optimal performance and safety.

Our support services include custom fabric solutions tailored to your specific requirements, quality assurance testing, and certification documentation. We also offer training sessions and workshops to help you understand the best practices for handling and integrating Meta Aramid Fabric into your products.

Please refer to our website for additional resources such as FAQs, technical articles, and case studies. We are committed to delivering exceptional customer service and technical expertise to support your projects involving Meta Aramid Fabric.

Packing and Shipping:

Our Meta Aramid Fabric is carefully packaged to ensure maximum protection during transit. Each roll or sheet is tightly wrapped in a moisture-resistant plastic film to prevent any damage from humidity or dirt. The wrapped fabric is then placed in a sturdy, reinforced cardboard box designed to withstand rough handling and stacking.

For bulk orders, multiple boxes are securely palletized and shrink-wrapped to maintain stability and facilitate safe loading and unloading. We use cushioning materials inside the packaging to avoid any creases or abrasions to the fabric surface.

Shipping is handled through reliable carriers with tracking options available to provide timely and safe delivery of your Meta Aramid Fabric. We offer various shipping methods including standard, expedited, and freight services to accommodate your specific needs.

Our commitment is to deliver the Meta Aramid Fabric in pristine condition, ready for immediate use upon arrival.

FAQ:

Q1: What is the brand and model number of this Meta Aramid Fabric?

A1: The brand name is Aramid Fabric, and the model number is TDZ200 FRMA.

Q2: Where is this Meta Aramid Fabric manufactured?

A2: This fabric is made in China.

Q3: What certifications does this Meta Aramid Fabric have?

A3: It is certified with EN 11612, ensuring its flame-resistant properties.

Q4: What is the minimum order quantity and price per meter?

A4: The minimum order quantity is 1000 meters, and the price is 11 dollars per meter.

Q5: How is the fabric packaged and what is the typical delivery time?

A5: The fabric is packaged in rolls of about 90 meters each. The typical delivery time is 60 days.

Q6: What are the payment terms and supply ability for this product?

A6: Payment terms are T/T (Telegraphic Transfer), and the supply ability is 3000 meters per day.
